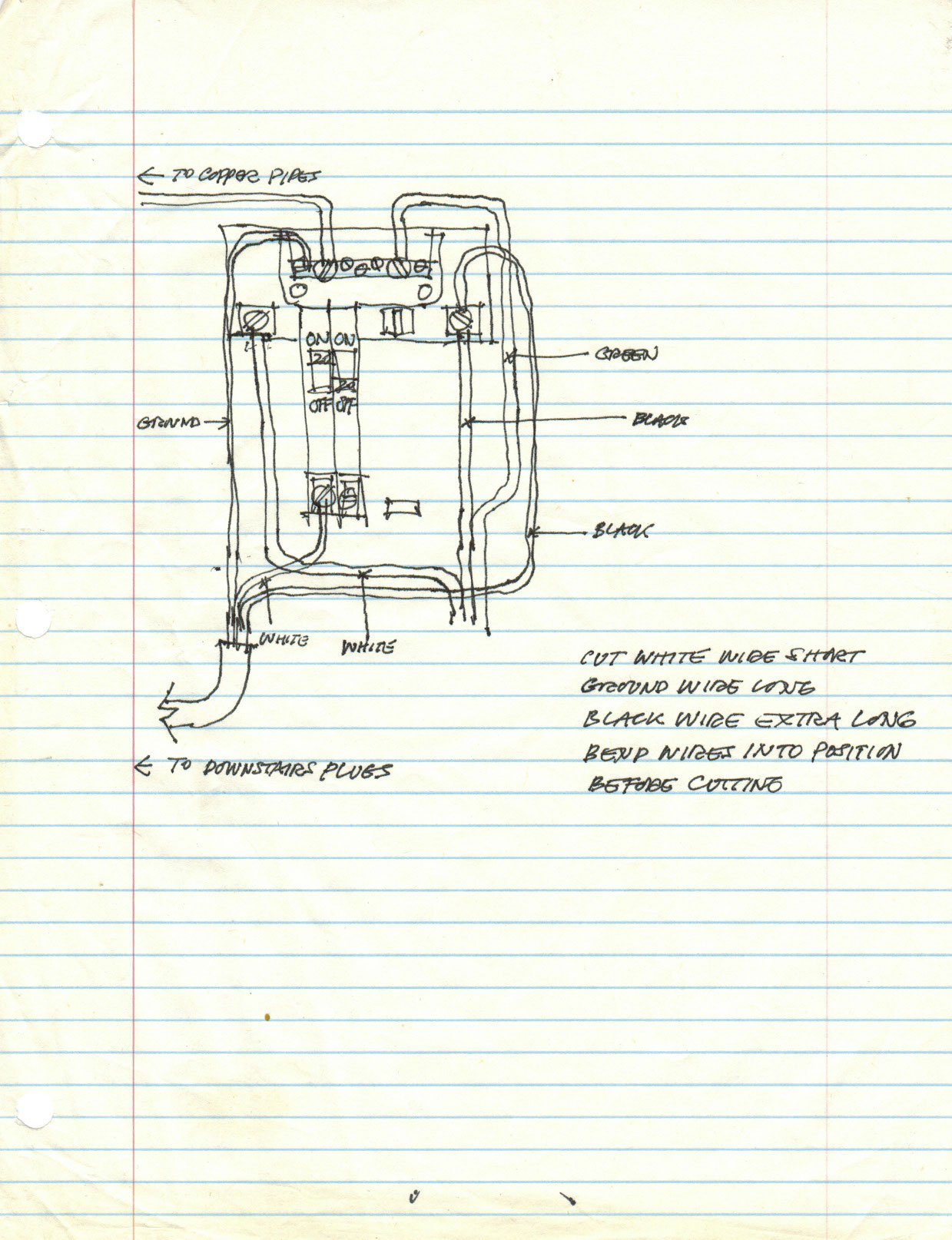

Field notes on how to wire the circuit breaker panel

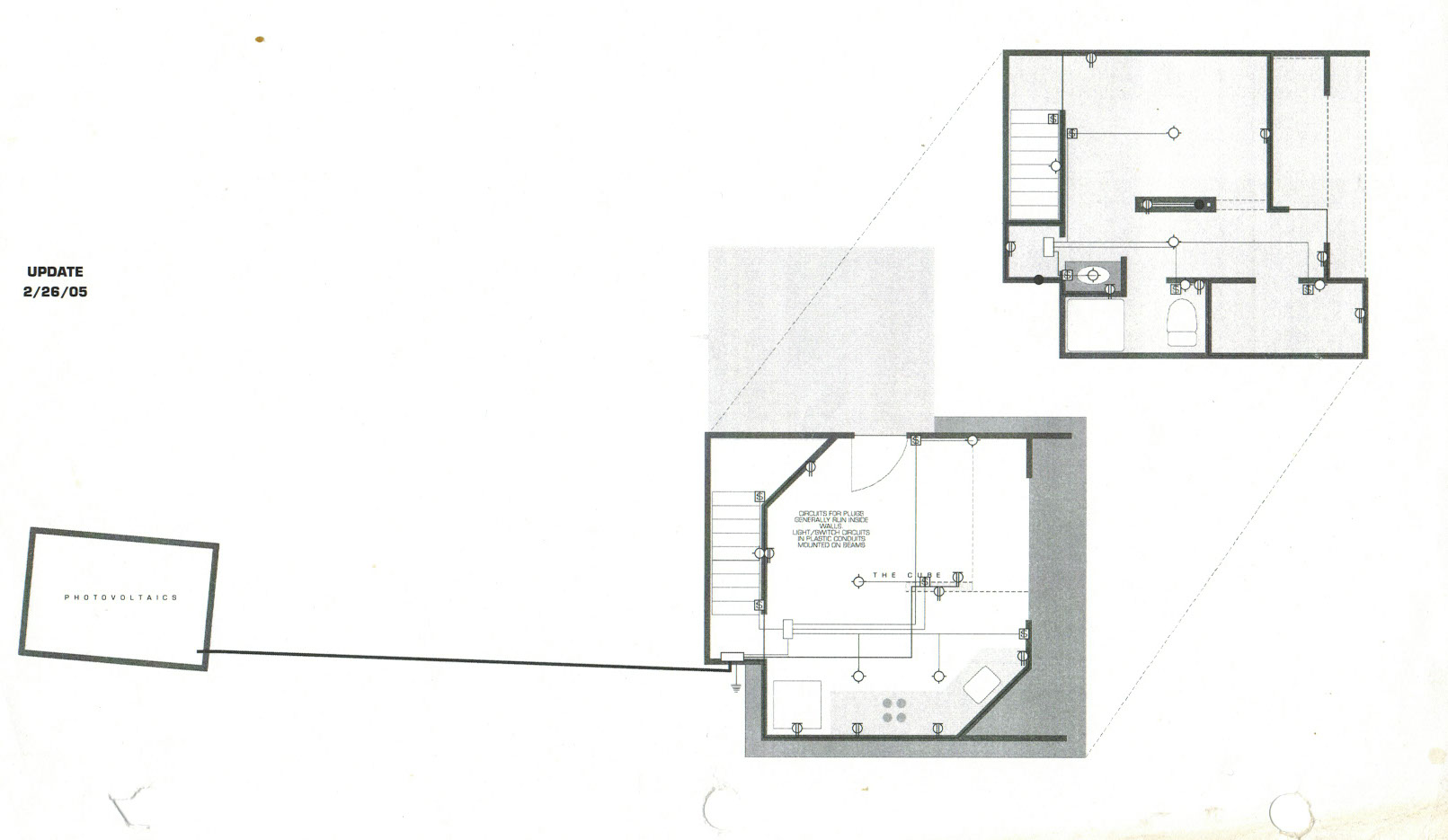

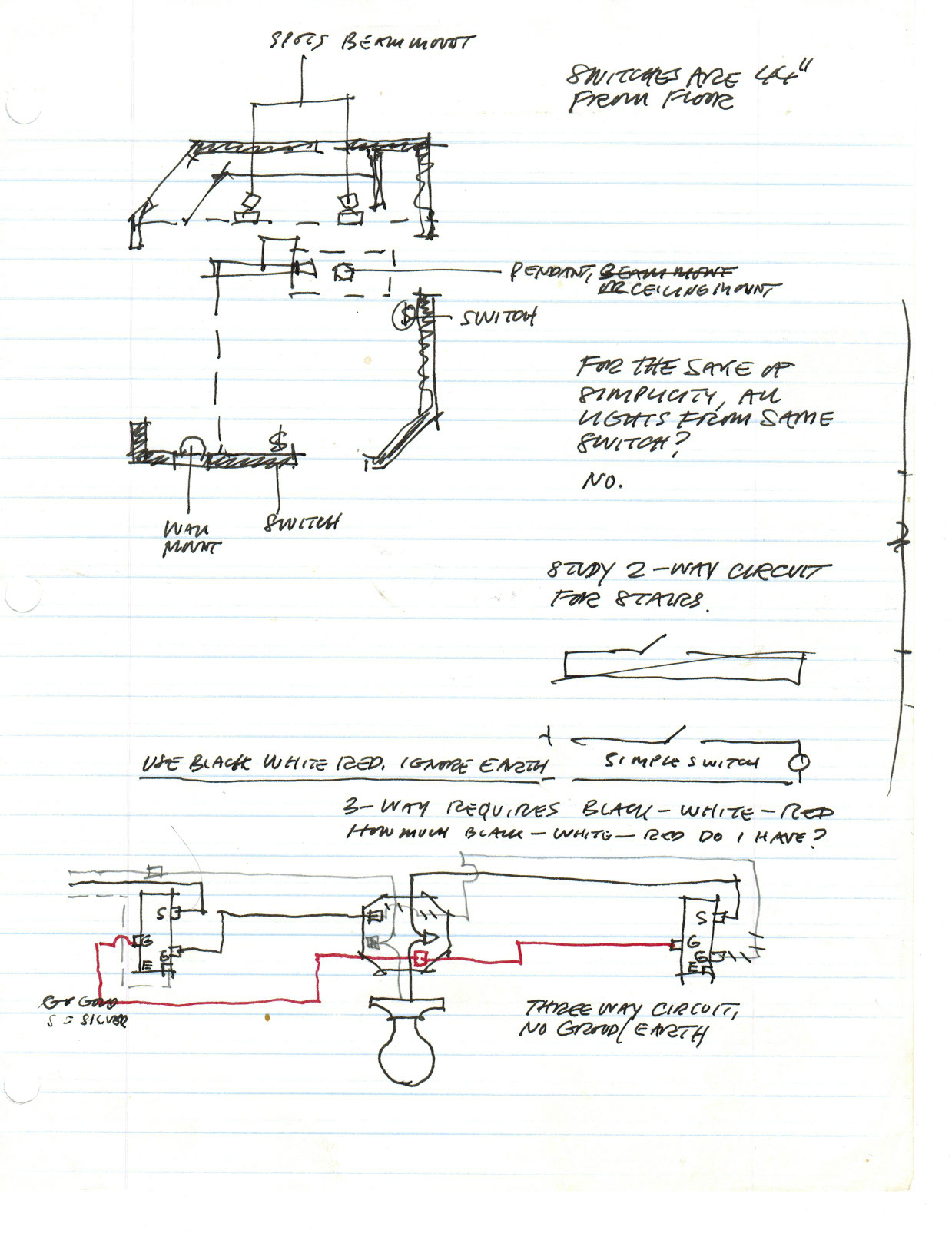

Thinking on paper about details of wiring the lower floor

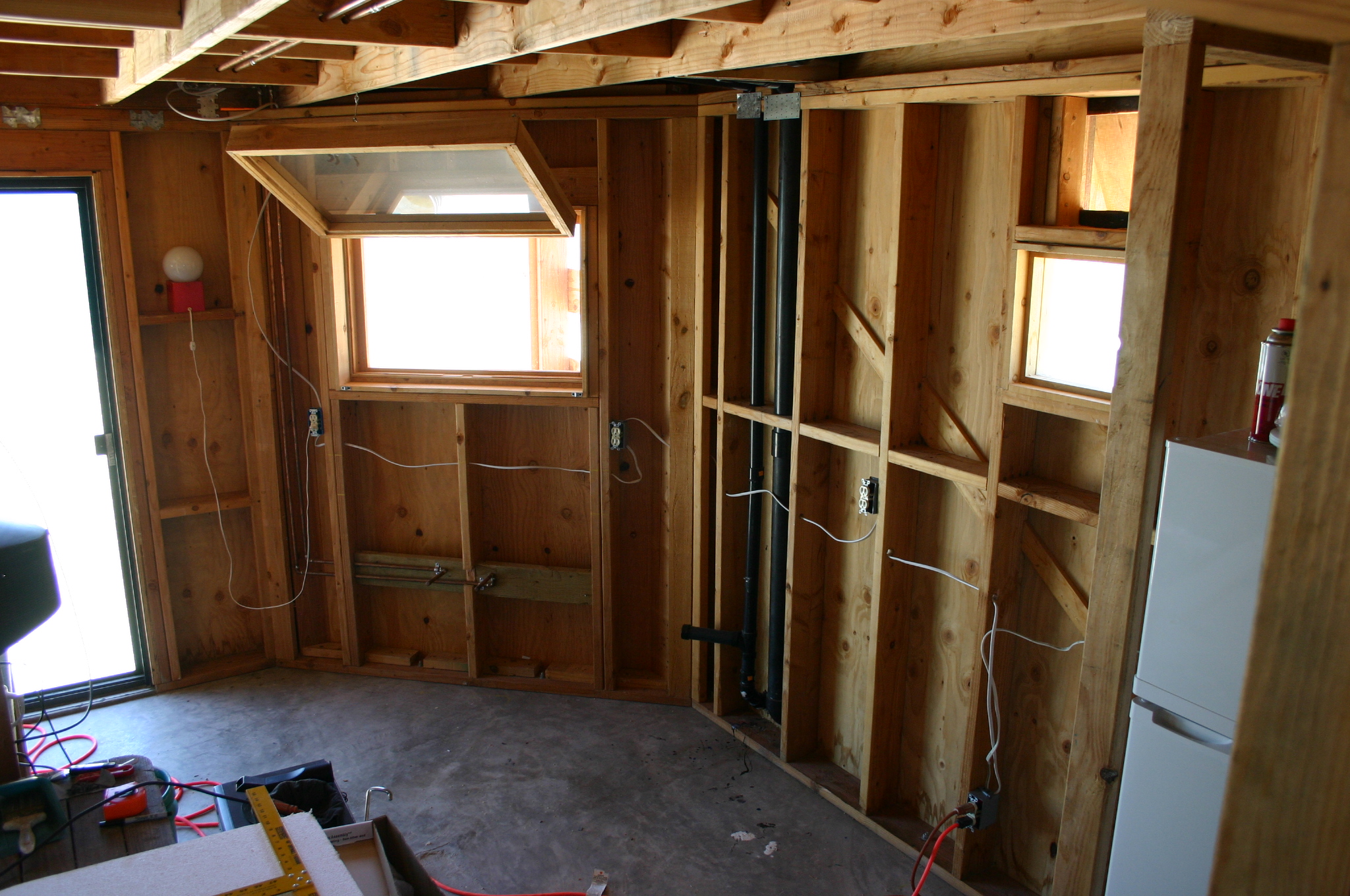

Wiring the kitchen plugs

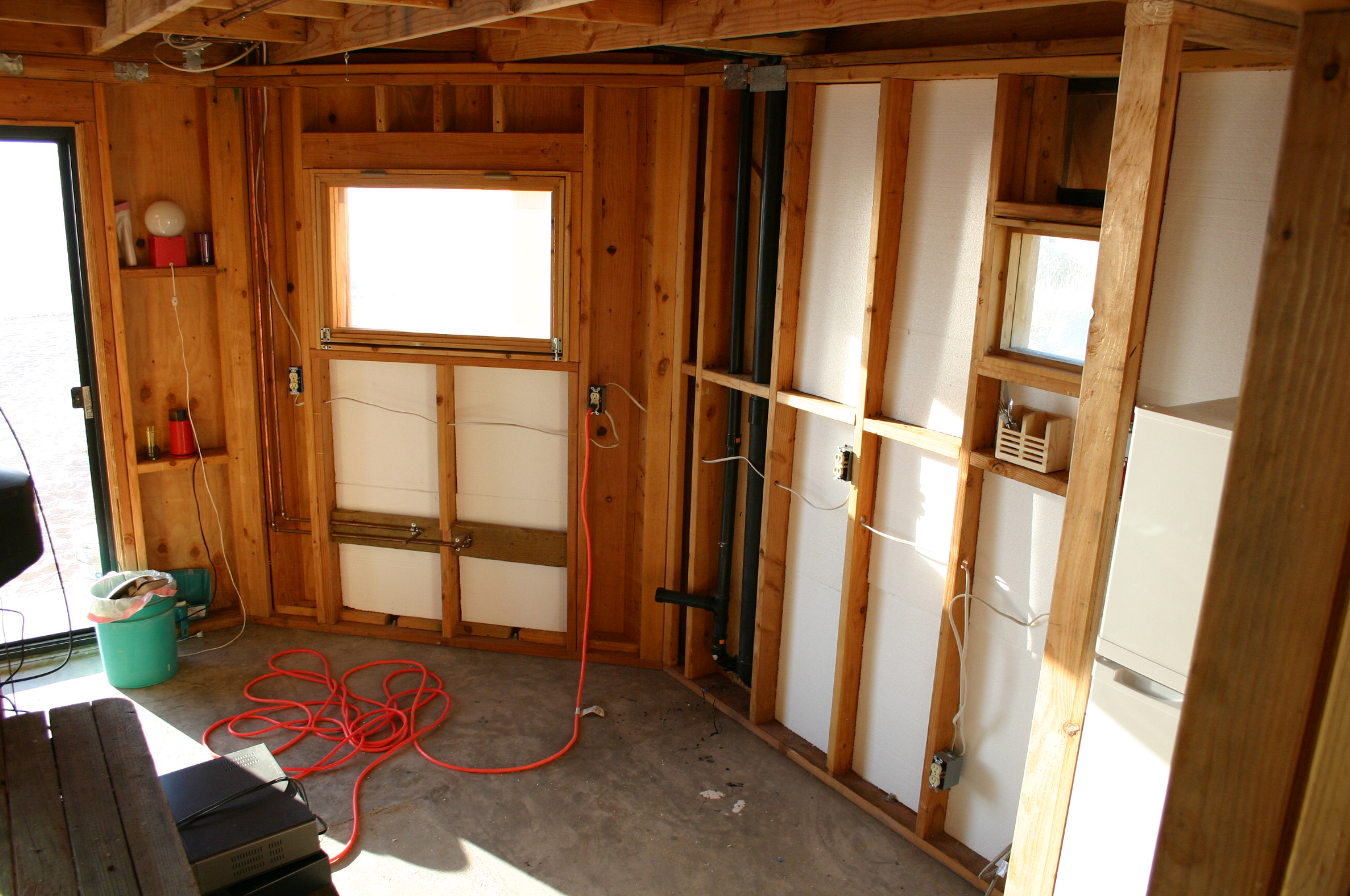

Insulation is tucked in behind the wiring

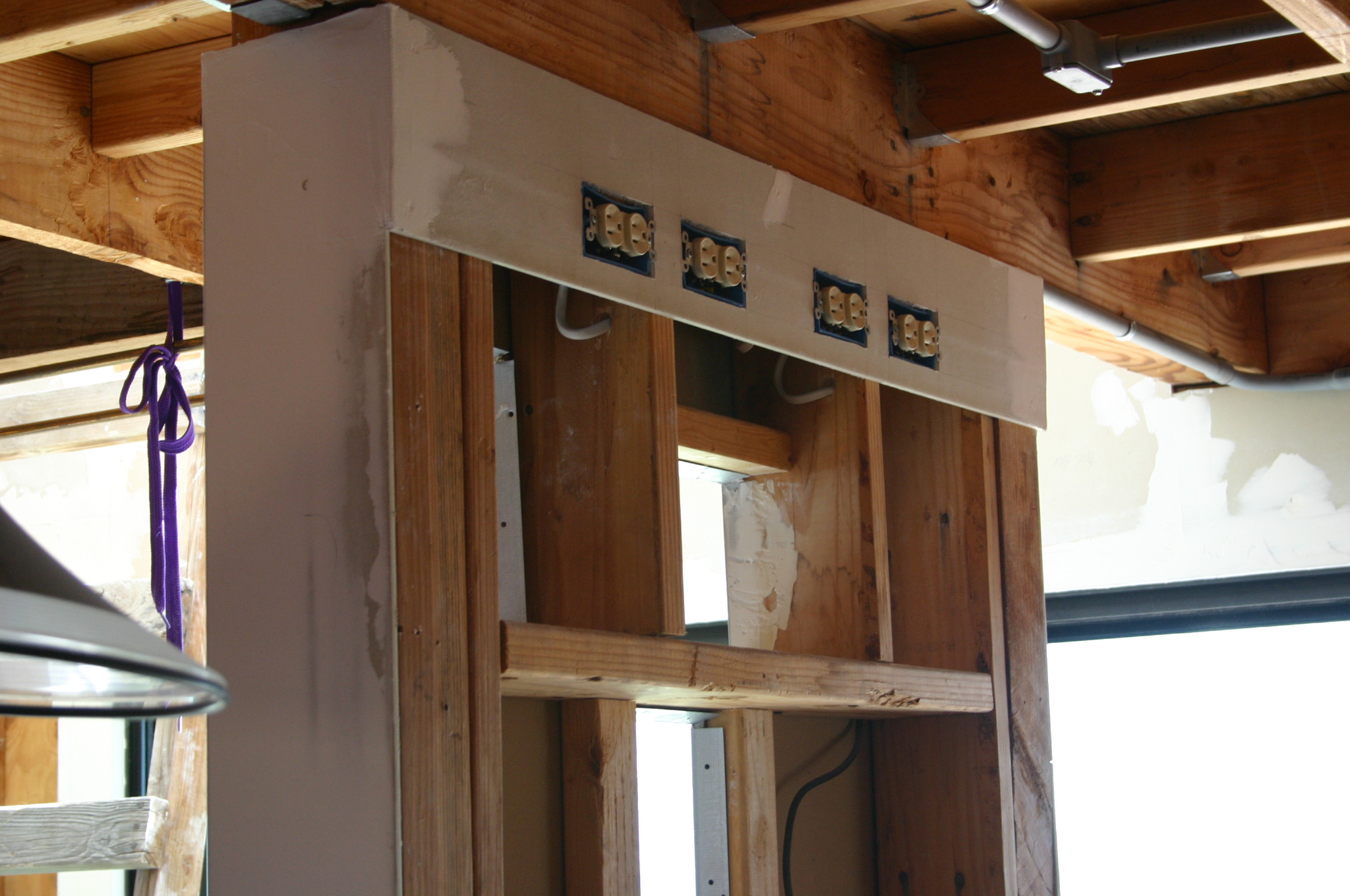

Plenty of outlets for ceiling fans. Wiring running in Cantex counduit can be seen attached to the ceiling beams

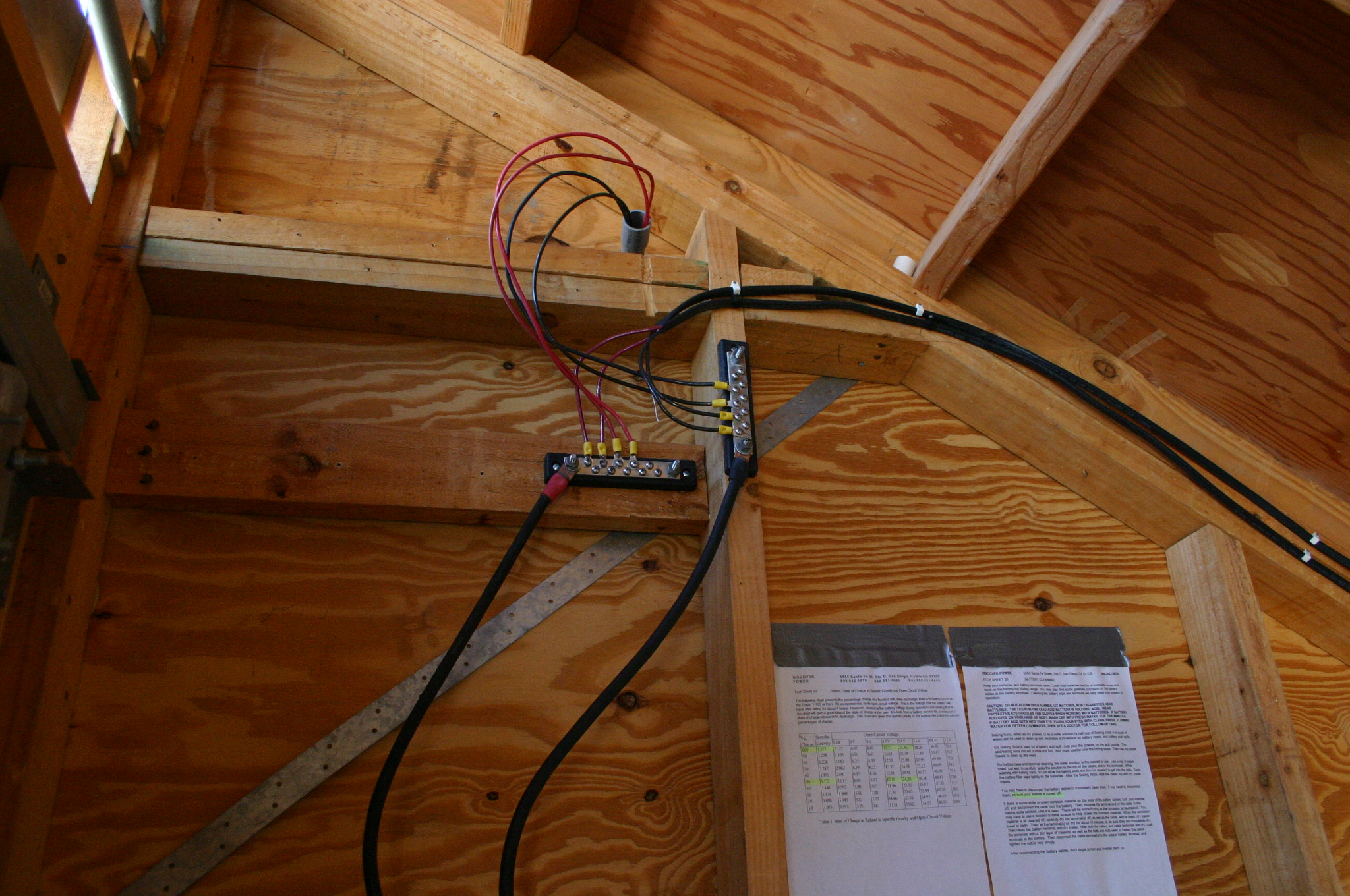

Bus bars in the shed taking DC feed from panels

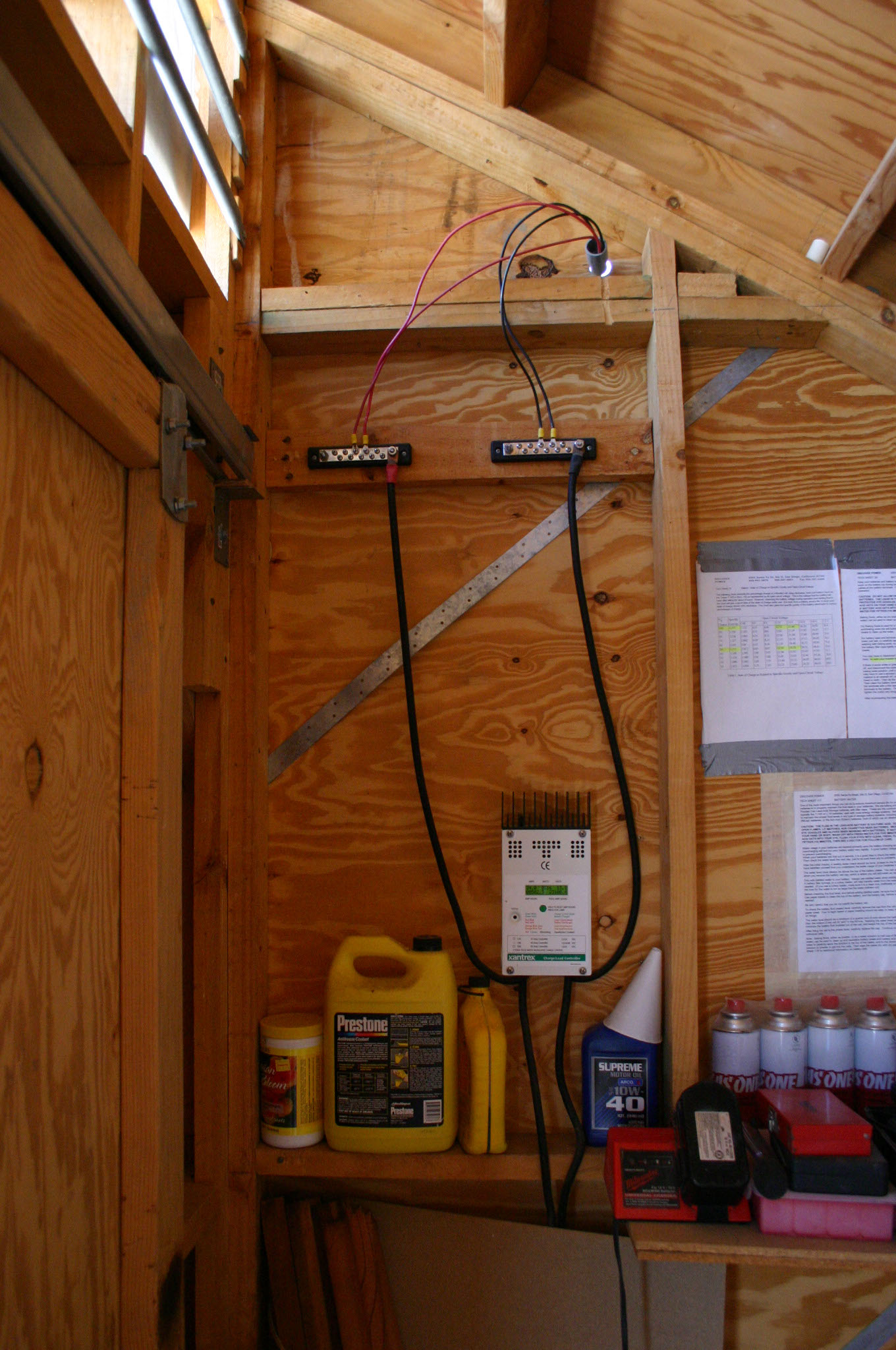

Bus bars connect to the charge controller

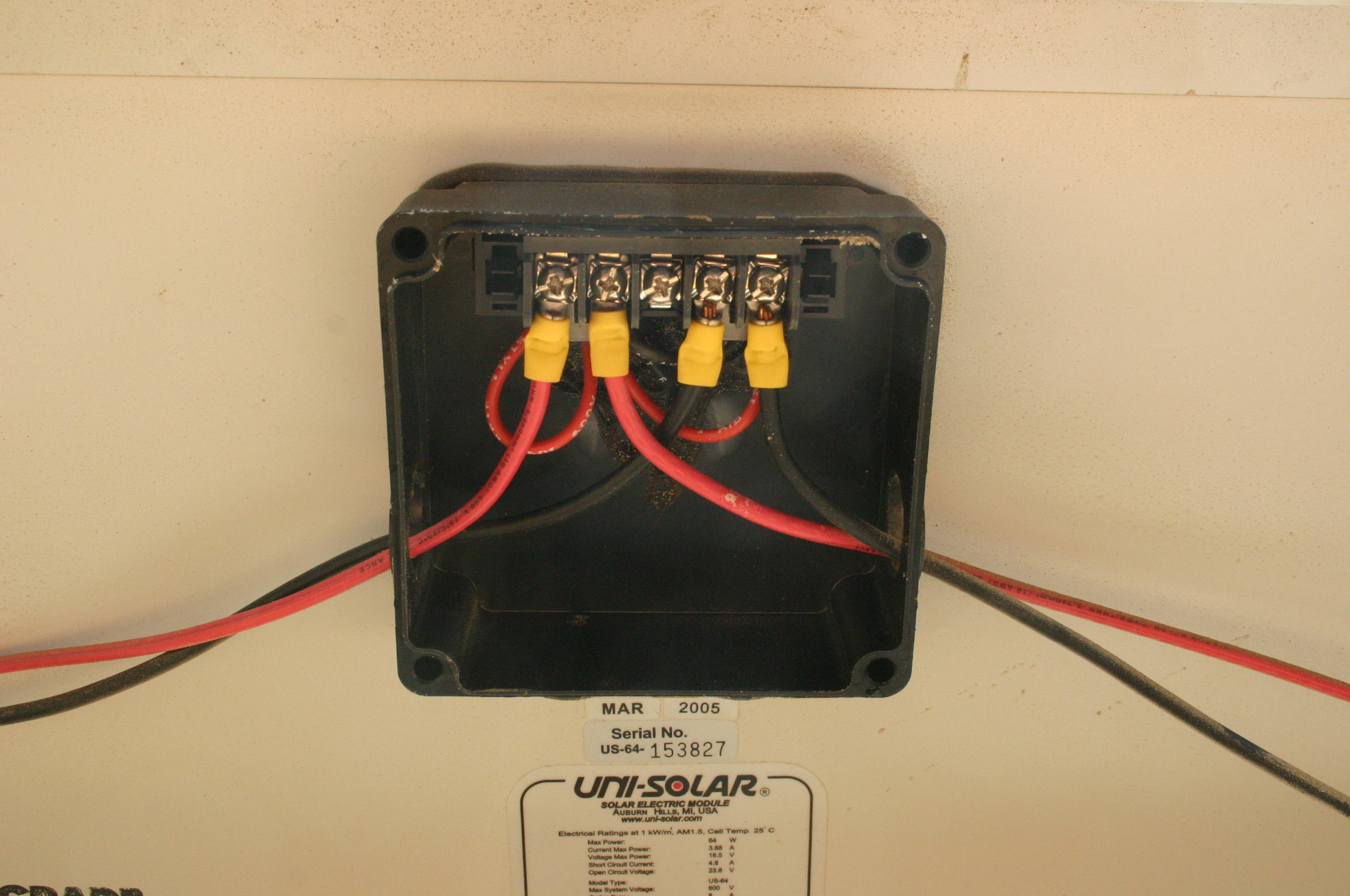

Junction box for an Unisolar panel

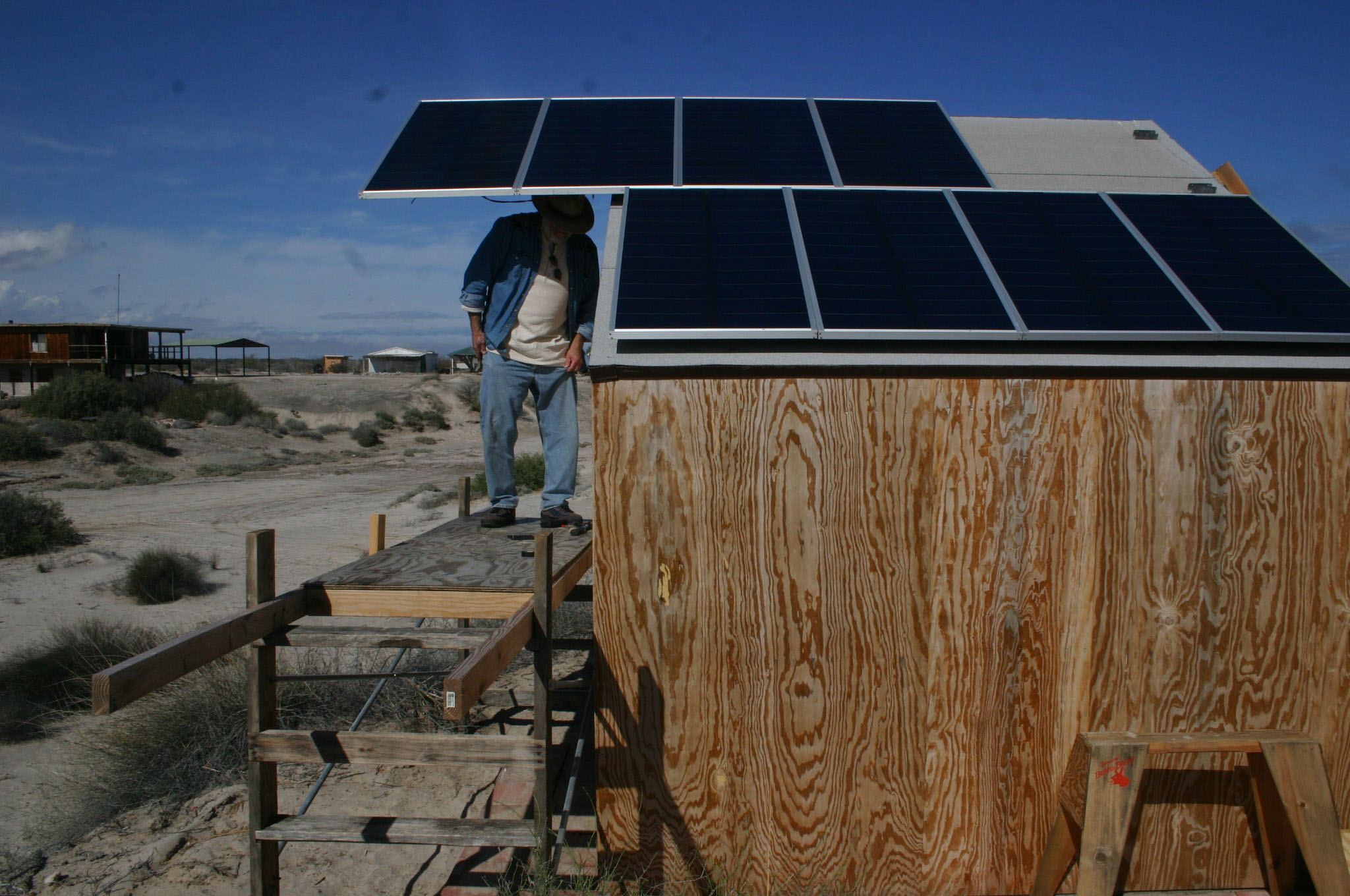

Rick inspects panels during re-wiring them for 24 volt

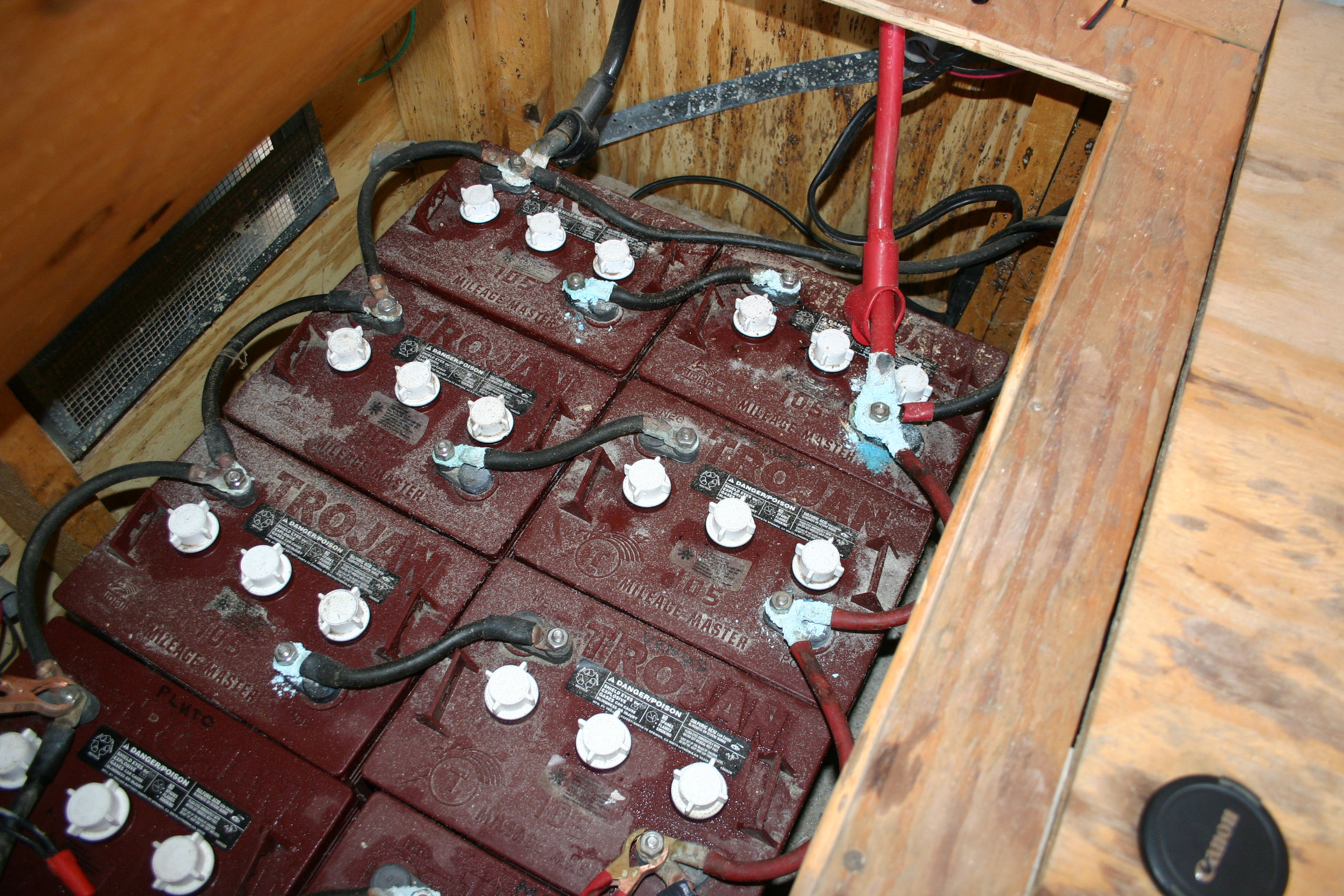

Nasty corrosion on the original lead-acid battery bank. Sea air and blown sand are fouling the cables

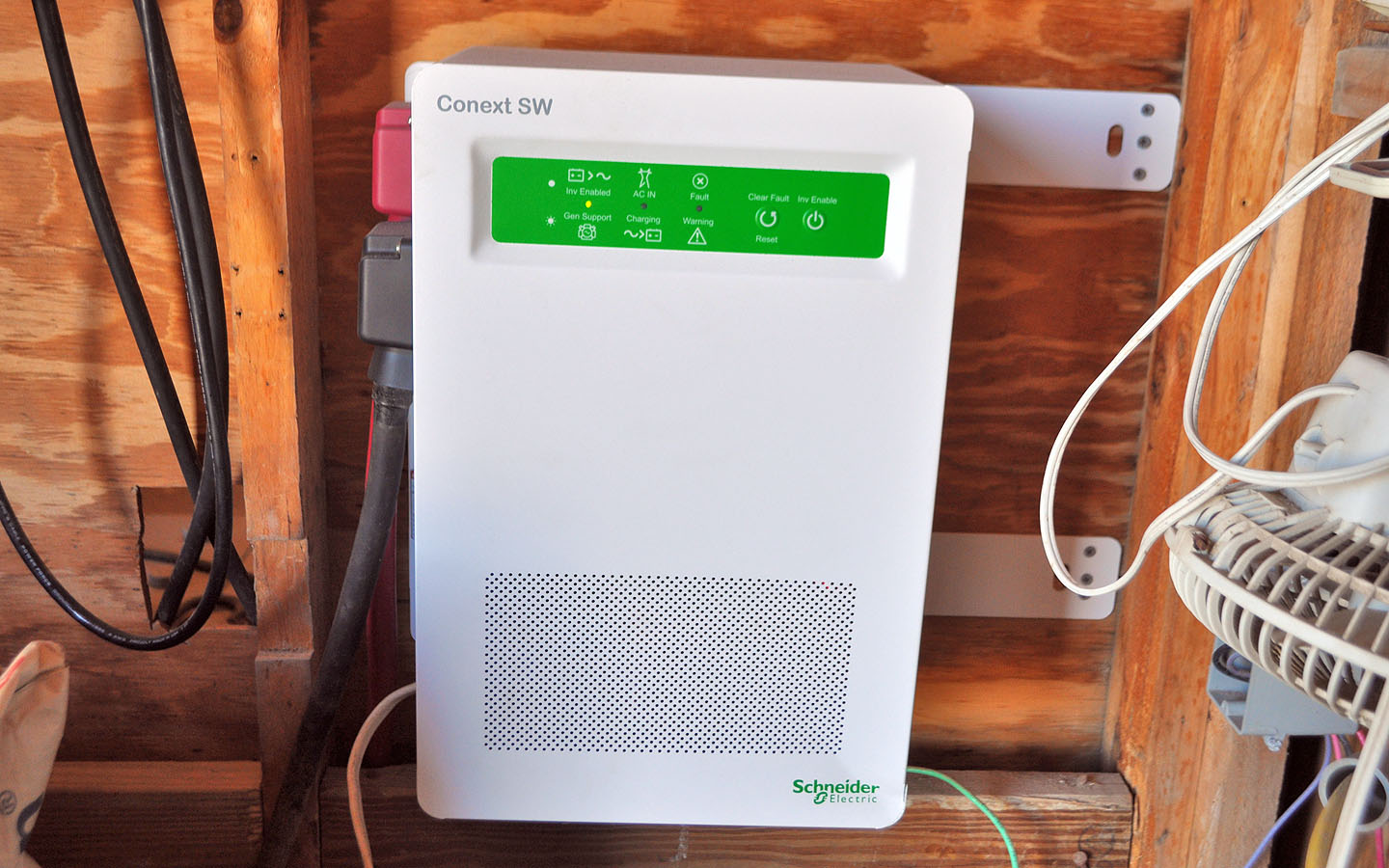

The Schneider 2,500 W inverter installed in October 2014 replacing the failed Xantrex inverter which was installed in 2008
